ビームエキスパンダは入射するレーザのビーム径を広げる役割をする光学部品です。ビーム径を広げることで集光スポットを小さくすることができます。

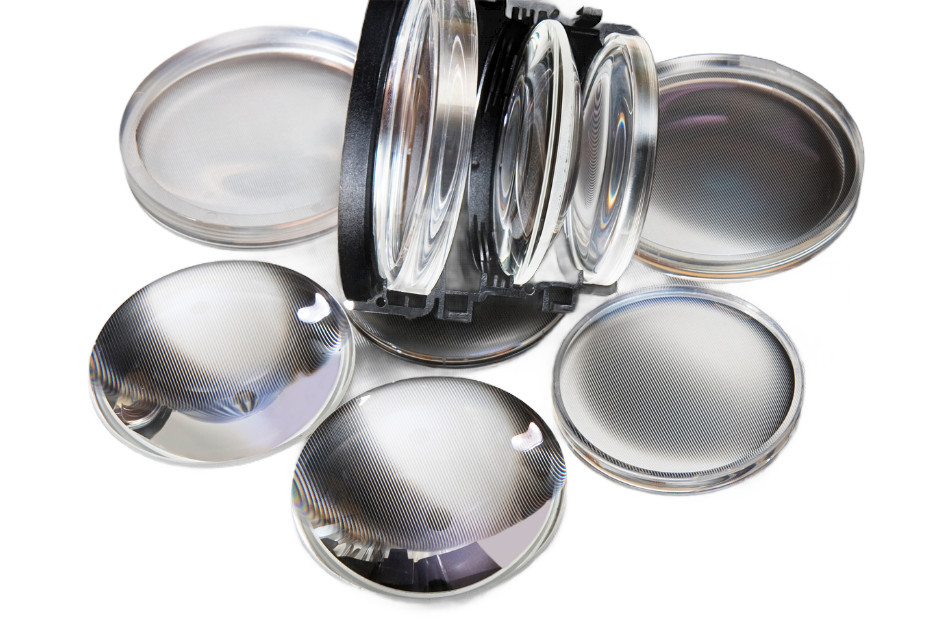

集光/拡散レンズ（266nm,355nm,532nm,1064nm,CO2対応）
レンズの種類
レンズは集光レンズと拡散レンズに大きく分類できます。
集光レンズは平行光を集光したり、拡散光を平行光にしたりするのに使われ、拡散レンズは平行光を拡散光にするのに使われます。
レンズの形状には、平凸、平凹、両凸、両凹、メニスカス、非球面などの種類があります。
結構いろんな種類があるんだね。
どうやって使い分ければいいの？
以下にご紹介しますね。
平凸レンズ
平凸レンズの形状は、片面がフラット、片面が凸形状です。フラットな面から平行光を入れると、凸面で各光線が屈折し、光線を一方向に収束させることができる集光レンズです。
フラットな面から光を入れることで収差が少ないという特徴があります。
平凹レンズ
平凹レンズの形状は、片面がフラット、片面が凹形状です。フラットな面から平行光を入れると、凹面で各光線が屈折し、光を拡散させる拡散レンズです。
フラットな面から光を入れることで収差が少ないという特徴があります。
両凸レンズ
両面が凸形状をした集光レンズです。光をどちらから入射させても同じ屈折効果が得られます。
平凸レンズと比較すると収差がやや大きくなります。
両凹レンズ
両面が凹形状をした拡散レンズです。光をどちらから入射させても同じ屈折効果が得られます。
平凹レンズと比較すると収差がやや大きくなります。
メニスカスレンズ
片面が凸形状、片面が凹形状のレンズです。凸形状と凹形状を適切に調整することにより、収差を大幅に軽減できます。
メニスカスレンズには、正メニスカスレンズと負メニスカスレンズがあり、それぞれ集光レンズと拡散レンズです。
非球面レンズ
非球面レンズは球面から外れた曲線を持つレンズです。光の通過点に合わせて最適な曲率に計算されており、球面収差を含む様々な収差を軽減します。ダブレットやトリプレットを使わずして、1枚のレンズで高度な収差補正ができるのが最大の特徴です。
製品
様々な径、波長、焦点距離に対応した各種レンズを取り揃えております。ご使用のレーザにあわせて、ZnSe、サファイヤ、合成石英、BK7などの材質からお選びいただけます。低価格なシングレットと集光特性の高いダブレット、トリプレットも取り揃えています。
高出力CO2レーザ用ZnSe平凸レンズ
| 型番 | 直径 (mm) | 焦点距離 (inch) | エッジ厚 (mm) |
|---|---|---|---|
| LZ-1-1.5-ET3 | 25.4 | 1.5 | 3 |
| LZ-1-2-ET3 | 25.4 | 2 | 3 |
| LZ-1-2.5-ET3 | 25.4 | 2.5 | 3 |
| LZ-1-3-ET3 | 25.4 | 3 | 3 |
| LZ-1-4-ET3 | 25.4 | 4 | 3 |
| LZ-1-5-ET3 | 25.4 | 5 | 3 |
| LZ-1-10-ET3 | 25.4 | 10 | 3 |
| LZ-1-12.5-ET4.8 | 25.4 | 12.5 | 4.8 |
| LZ-1-15-ET4.8 | 25.4 | 15 | 4.8 |
| LZ-1.1-5-ET3 | 27.9 | 5 | 3 |
| LZ-1.1-5-ET4 | 27.9 | 5 | 4 |
| LZ-1.1-5-ET6 | 27.9 | 5 | 5 |
| LZ-1.1-7.5-ET4 | 27.9 | 7.5 | 4 |
| LZ-1.1-7.5-ET6 | 27.9 | 7.5 | 6 |
| LZ-1.5-2.5-ET7.4 | 38.1 | 2.5 | 7.4 |
| LZ-1.5-3.5-ET3 | 38.1 | 3.5 | 3 |
| LZ-1.5-3.63-ET7.2 | 38.1 | 3.6 | 7.2 |
| LZ-1.5-3.75-ET3 | 38.1 | 3.7 | 3 |
| LZ-1.5-3.75-ET7.4 | 38.1 | 3.7 | 7.4 |
| LZ-1.5-5-ET4 | 38.1 | 5 | 4 |
| LZ-1.5-5-ET6 | 38.1 | 5 | 6 |
| LZ-1.5-5-ET7.4 | 38.1 | 5 | 7.4 |
| LZ-1.5-5-ET7.6 | 38.1 | 5 | 7.6 |
| LZ-1.5-5-ET7.8 | 38.1 | 5 | 7.8 |
| LZ-1.5-5-ET8 | 38.1 | 5 | 8 |
| LZ-1.5-5.13-ET7.1 | 38.1 | 5.1 | 7.1 |
| LZ-1.5-7.5-ET2.5 | 38.1 | 7.5 | 2.5 |
| LZ-1.5-7.5-ET4 | 38.1 | 7.5 | 4 |
| LZ-1.5-7.5-ET6 | 38.1 | 7.5 | 6 |
| LZ-1.5-7.5-ET7.4 | 38.1 | 7.5 | 7.4 |
| LZ-1.5-7.5-ET7.6 | 38.1 | 7.5 | 7.6 |
| LZ-1.5-7.5-ET7.8 | 38.1 | 7.5 | 7.8 |
| LZ-1.5-7.5-ET8 | 38.1 | 7.5 | 8 |
| LZ-1.5-7.63-ET8 | 38.1 | 7.6 | 8 |
| LZ-1.5-15-ET8 | 38.1 | 15 | 8 |
| LZ-2-5-ET7.9 | 50.8 | 5 | 7.9 |
| LZ-2-5-ET8 | 50.8 | 5 | 8 |
| LZ-2-5-ET9.6 | 50.8 | 5 | 9.6 |
| LZ-2-5.18-ET9.65 | 50.8 | 5.2 | 9.7 |
| LZ-2-7.5-ET7.4 | 50.8 | 7.5 | 7.4 |
| LZ-2-7.5-ET7.8 | 50.8 | 7.5 | 7.8 |
| LZ-2-7.5-ET8 | 50.8 | 7.5 | 8 |
| LZ-2-7.5-ET9.6 | 50.8 | 7.5 | 9.6 |
| LZ-2-7.5-ET9.65 | 50.8 | 7.5 | 9.7 |
| LZ-2-8.75-ET7.8 | 50.8 | 8.7 | 7.8 |
| LZ-2-8.75-ET8.5 | 50.8 | 8.7 | 8.5 |
| LZ-2-10-ET7.8 | 50.8 | 10 | 7.8 |
| LZ-2-10-ET7.9 | 50.8 | 10 | 7.9 |
| LZ-2-10-ET9.6 | 50.8 | 10 | 9.6 |
| LZ-2-10.08-ET9.9 | 50.8 | 10.1 | 9.9 |
| LZ-2.5-8.75-ET9.7 | 63.5 | 8.7 | 9.7 |
| LZ-2.5-10-ET9.6 | 63.5 | 10 | 9.6 |
| LZ-2.5-10-ET9.9 | 63.5 | 10 | 9.9 |
高出力CO2レーザ用ZnSeメニスカスレンズ
| 型番 | 直径 (mm) | 焦点距離 (inch) | エッジ厚 (mm) |
|---|---|---|---|
| LZM-1-5-ET2.5 | 25.4 | 5 | 2.5 |
| LZM-1.1-1.5-ET5 | 27.9 | 1.5 | 5 |
| LZM-1.1-2.5-ET2.3 | 27.9 | 2.5 | 2.3 |
| LZM-1.1-2.5-ET3 | 27.9 | 2.5 | 3 |
| LZM-1.1-2.5-ET4.2 | 27.9 | 2.5 | 4.2 |
| LZM-1.1-2.5-ET6 | 27.9 | 2.5 | 6 |
| LZM-1.1-3.75-ET2 | 27.9 | 3.7 | 2 |
| LZM-1.1-3.75-ET4.2 | 27.9 | 3.7 | 4.2 |
| LZM-1.1-5-ET2.7 | 27.9 | 5 | 2.7 |
| LZM-1.1-5-ET4.2 | 27.9 | 5 | 4.2 |
| LZM-1.1-5-ET5.1 | 27.9 | 5 | 5.1 |
| LZM-1.1-5-ET6 | 27.9 | 5 | 6 |
| LZM-1.1-7.5-ET6 | 27.9 | 7.5 | 6 |
| LZM-1.1-10-ET2.9 | 27.9 | 10 | 2.9 |
| LZM-1.5-2.5-ET3 | 38.1 | 2.5 | 3 |
| LZM-1.5-2.5-ET6 | 38.1 | 2.5 | 6 |
| LZM-1.5-2.5-ET7.3 | 38.1 | 2.5 | 7.3 |
| LZM-1.5-3.75-ET6 | 38.1 | 3.7 | 6 |
| LZM-1.5-3.75-ET7 | 38.1 | 3.7 | 7 |
| LZM-1.5-3.75-ET7.4 | 38.1 | 3.7 | 7.4 |
| LZM-1.5-3.75-ET9 | 38.1 | 3.7 | 9 |
| LZM-1.5-5-ET2.4 | 38.1 | 5 | 2.4 |
| LZM-1.5-5-ET3 | 38.1 | 5 | 3 |
| LZM-1.5-5-ET4 | 38.1 | 5 | 4 |
| LZM-1.5-5-ET6 | 38.1 | 5 | 6 |
| LZM-1.5-5-ET7.3 | 38.1 | 5 | 7.3 |
| LZM-1.5-5-ET7.4 | 38.1 | 5 | 7.4 |
| LZM-1.5-5-ET7.8 | 38.1 | 5 | 7.9 |
| LZM-1.5-5-ET9 | 38.1 | 5 | 9 |
| LZM-1.5-7.5-ET3 | 38.1 | 7.5 | 3 |
| LZM-1.5-7.5-ET6 | 38.1 | 7.5 | 6 |
| LZM-1.5-7.5-ET7.3 | 38.1 | 7.5 | 7.3 |
| LZM-1.5-7.5-ET7.4 | 38.1 | 7.5 | 7.4 |
| LZM-1.5-7.5-ET7.9 | 38.1 | 7.5 | 7.9 |
| LZM-1.5-7.5-ET9 | 38.1 | 7.5 | 9 |
| LZM-1.5-7.5-ET10 | 38.1 | 7.5 | 10 |
| LZM-1.5-8.85-ET7.4 | 38.1 | 8.8 | 7.4 |
| LZM-1.5-10-ET7.36 | 38.1 | 10 | 7.4 |
| LZM-1.5-10-ET9 | 38.1 | 10 | 9 |
| LZM-2-3.75-ET9.6 | 50.8 | 3.7 | 9.6 |
| LZM-2-5-ET7.8 | 50.8 | 5 | 7.8 |
| LZM-2-5-ET8 | 50.8 | 5 | 8 |
| LZM-2-5-ET9.6 | 50.8 | 5 | 9.6 |
| LZM-2-5-ET11 | 50.8 | 5 | 11 |
| LZM-2-7.5-ET3.5 | 50.8 | 7.5 | 3.5 |
| LZM-2-7.5-ET8 | 50.8 | 7.5 | 8 |
| LZM-2-7.5-ET9.6 | 50.8 | 7.5 | 9.6 |
| LZM-2-10-ET9.6 | 50.8 | 10 | 9.6 |
| LZM-2-12.5-ET9.65 | 50.8 | 12.5 | 9.7 |
| LZM-2.5-7.5-ET11 | 63.5 | 7.5 | 11 |
CO2レーザ用ZnSe平凸レンズ
| 型番 | 直径 (mm) | 焦点距離 (mm) | エッジ厚 (mm) |
|---|---|---|---|
| LZ-8-22.5-ET1.8 | 8 | 22.5 | 1.8 |
| LZ-8-50-ET2 | 8 | 50 | 2 |
| LZ-10-1.5-ET2 | 10 | 38.1 | 2 |
| LZ-12-7.1-ET1.5 | 12 | 7.1 | 1.5 |
| LZ-0.5-1-ET2.1 | 12.7 | 25.4 | 2.1 |
| LZ-0.5-1.5-ET2 | 12.7 | 38.1 | 2 |
| LZ-0.5-1.5-ET2.1 | 12.7 | 38.1 | 2.1 |
| LZ-0.5-1.5-ET2.5 | 12.7 | 38.1 | 2.5 |
| LZ-0.5-2.5-ET2 | 12.7 | 63.5 | 2 |
| LZ-0.5-5-ET2 | 12.7 | 127 | 2 |
| LZ-0.5-6-ET2 | 12.7 | 152.4 | 2 |
| LZ-0.5-8-ET2 | 12.7 | 203.2 | 2 |
| LZ-13-50.6-ET2.7 | 13 | 50.6 | 2.7 |
| LZ-15-16-ET2 | 15 | 16 | 2 |
| LZ-15-1.5-ET2 | 15 | 38.1 | 2 |
| LZ-15.8-47-ET2 | 15 | 47 | 2 |
| LZ-15-2-ET1.52 | 15 | 50.8 | 2 |
| LZ-15-150-ET2 | 15 | 150 | 2 |
| LZ-0.6-1-ET2 | 15.2 | 25.4 | 2 |
| LZ-0.6-1.5-ET1.5 | 15.2 | 38.1 | 1.5 |
| LZ-0.6-1.5-ET2 | 15.2 | 38.1 | 2 |
| LZ-0.6-1.5-ET3 | 15.2 | 38.1 | 3 |
| LZ-0.6-2-ET2 | 15.2 | 50.6 | 2 |
| LZ-0.6-2.5-ET2 | 15.2 | 63.5 | 2 |
| LZ-0.6-3.5-ET2 | 15.2 | 88.9 | 2 |
| LZ-0.6-4-ET2 | 15.2 | 101.6 | 2 |
| LZ-0.6-5-ET2 | 15.2 | 127 | 2 |
| LZ-17.5-1.5-ET2 | 17.5 | 38.1 | 2 |
| LZ-17.5-2.0-ET2.1 | 17.5 | 50.8 | 2.1 |
| LZ-17.5-2.5-ET2 | 17.5 | 63.5 | 2 |
| LZ-17.5-3-ET2.3 | 17.5 | 76.2 | 2.3 |
| LZ-17.5-3.38-ET2 | 17.5 | 86.4 | 2 |
| LZ-18-127-ET2 | 18 | 127 | 2 |
| LZ-0.75-1-ET2 | 19 | 25.4 | 2 |
| LZ-0.75-1.5-ET2 | 19 | 38.1 | 2 |
| LZ-0.75-2-ET2 | 19 | 50.6 | 2 |
| LZ-0.75-2.5-ET2 | 19 | 63.5 | 2 |
| LZ-0.75-70-ET2 | 19 | 70 | 2 |
| LZ-0.75-3-ET2 | 19 | 76.2 | 2 |
| LZ-0.75-4-ET2 | 19 | 101.6 | 2 |
| LZ-0.75-4-ET3 | 19 | 101.6 | 3 |
| LZ-0.75-5-ET2 | 19 | 127 | 2 |
| LZ-0.75-12-ET2 | 19 | 304.8 | 2 |
| LZ-20-22-ET5 | 20 | 22 | 5 |
| LZ-20-1.5-ET2 | 20 | 38.1 | 2 |
| LZ-20-38.6-ET3.5 | 20 | 38.6 | 3.5 |
| LZ-20-2-ET2 | 20 | 50.8 | 2 |
| LZ-20-6.9-ET2.8 | 20 | 175.3 | 2.8 |
| LZ-20-14.5-ET2.9 | 20 | 369.1 | 2.9 |
| LZ-21.8-76-ET3 | 21 | 76 | 3 |
| LZ-22-3-ET2.2 | 22 | 76.2 | 2.2 |
| LZ-25-2.5-ET2 | 25 | 63.5 | 2 |
| LZ-25-3-ET2 | 25 | 76.2 | 2 |
| LZ-25-3.76-ET2.4 | 25 | 96.5 | 2.4 |
| LZ-1-0.5-ET2 | 25.4 | 12.7 | 2 |
| LZ-1-1-ET3 | 25.4 | 25.4 | 3 |
| LZ-1-30-ET3 | 25.4 | 30 | 3 |
| LZ-1-1.5-ET2.1 | 25.4 | 38.1 | 2.1 |
| LZ-1-1.5-ET3 | 25.4 | 38.1 | 3 |
| LZ-1-2-ET2 | 25.4 | 50.8 | 2 |
| LZ-1-2-ET3 | 25.4 | 50.8 | 3 |
| LZ-1-2.5-ET2 | 25.4 | 63.5 | 2 |
| LZ-1-2.5-ET3 | 25.4 | 63.5 | 3 |
| LZ-1-3-ET2 | 25.4 | 76.2 | 2 |
| LZ-1-3-ET3 | 25.4 | 76.2 | 3 |
| LZ-1-3.5-ET2.2 | 25.4 | 88.9 | 2.2 |
| LZ-1-4-ET2 | 25.4 | 101.6 | 2 |
| LZ-1-4-ET3 | 25.4 | 101.6 | 3 |
| LZ-1-5-ET3 | 25.4 | 127 | 3 |
| LZ-1-5-ET6 | 25.4 | 127 | 6 |
| LZ-1-6-ET2 | 25.4 | 152.4 | 2 |
| LZ-1-6.17-ET3 | 25.4 | 152.4 | 3 |
| LZ-1-7-ET3 | 25.4 | 177.8 | 3 |
| LZ-1-7.5-ET3 | 25.4 | 190.5 | 3 |
| LZ-1-300-ET3 | 25.4 | 300 | 3 |
| LZ-1-400-ET3 | 25.4 | 400 | 3 |
| LZ-27-48-ET2 | 27 | 48 | 2 |
| LZ-1.1-1-ET3 | 27.9 | 25.4 | 3 |
| LZ-1.1-1.5-ET3 | 27.9 | 38.1 | 3 |
| LZ-1.1-2-ET3 | 27.9 | 50.8 | 3 |
| LZ-1.1-2.5-ET2 | 27.9 | 63.4 | 2 |
| LZ-1.1-2.5-ET3 | 27.9 | 63.5 | 3 |
| LZ-1.1-67.4-ET2 | 27.9 | 67.4 | 2 |
| LZ-1.1-3-ET2 | 27.9 | 76.2 | 2 |
| LZ-1.1-3-ET3 | 27.9 | 76.2 | 3 |
| LZ-1.1-3.5-ET2.5 | 27.9 | 88.9 | 2.5 |
| LZ-1.1-3.5-ET3 | 27.9 | 88.9 | 3 |
| LZ-1.1-3.75-ET3 | 27.9 | 95.2 | 3 |
| LZ-1.1-3.75-ET3.5 | 27.9 | 95.2 | 3.5 |
| LZ-1.1-4-ET3 | 27.9 | 101.6 | 3 |
| LZ-1.1-5-ET2 | 27.9 | 125.7 | 2 |
| LZ-1.1-5-ET3 | 27.9 | 127 | 3 |
| LZ-1.1-5-ET6 | 27.9 | 127 | 6 |
| LZ-28-13.25-ET2 | 28 | 336 | 2 |
| LZ-30-69.65-ET2.8 | 30 | 69.6 | 2.8 |
| LZ-30-3-ET3 | 30 | 76.2 | 3 |
| LZ-30-76.7-ET3 | 30 | 76.7 | 3 |
| LZ-30-77.9-ET3 | 30 | 77.9 | 3 |
| LZ-30-90.15-ET3 | 30 | 90.1 | 3 |
| LZ-30-3.75-ET2.2 | 30 | 94 | 2.2 |
| LZ-30-94.7-ET3.1 | 30 | 94.7 | 3.1 |
| LZ-30-112.20-ET2.3 | 30 | 112.2 | 2.3 |
| LZ-30-6.6-ET3.5 | 30 | 167.6 | 3.5 |
| LZ-1.25-3-ET3 | 31.7 | 76.2 | 3 |
| LZ-38-150-ET3 | 38 | 150 | 3 |
| LZ-38-190.25-ET3.3 | 38 | 190 | 3.3 |
| LZ-38-300-ET3 | 38 | 300 | 3 |
| LZ-1.5-15-ET3 | 38.1 | 15 | 3 |
| LZ-1.5-25-ET2 | 38.1 | 25 | 2 |
| LZ-1.5-1.5-ET3 | 38.1 | 38.1 | 3 |
| LZ-1.5-2-ET3 | 38.1 | 50.8 | 3 |
| LZ-1.5-2.5-ET3 | 38.1 | 63.5 | 3 |
| LZ-1.5-2.5-ET6 | 38.1 | 63.5 | 6 |
| LZ-1.5-2.5-ET2 | 38.1 | 65.2 | 2 |
| LZ-1.5-3-ET3 | 38.1 | 76.2 | 3 |
| LZ-1.5-3.5-ET3 | 38.1 | 90.5 | 3 |
| LZ-1.5-3.75-ET3 | 38.1 | 95.2 | 3 |
| LZ-1.5-100-ET3 | 38.1 | 100 | 3 |
| LZ-1.5-5-ET3 | 38.1 | 128.1 | 3 |
| LZ-1.5-5-ET5 | 38.1 | 128.1 | 5 |
| LZ-1.5-5-ET6 | 38.1 | 128.1 | 6 |
| LZ-1.5-5-ET7.6 | 38.1 | 128.1 | 7.6 |
| LZ-1.5-5-ET8 | 38.1 | 128.1 | 8 |
| LZ-1.5-5.13-ET7 | 38.1 | 130.3 | 7 |
| LZ-1.5-175-ET3.3 | 38.1 | 175 | 3.3 |
| LZ-1.5-7.5-ET7.6 | 38.1 | 189 | 7.6 |
| LZ-1.5-7.5-ET6 | 38.1 | 190.5 | 6 |
| LZ-1.5-7.5-ET4 | 38.1 | 191 | 4 |
| LZ-1.5-7.5-ET8 | 38.1 | 191 | 8 |
| LZ-1.5-7.63-ET7.6 | 38.1 | 193 | 7.6 |
| LZ-1.5-205-ET3 | 38.1 | 205 | 3 |
| LZ-1.5-9-ET4 | 38.1 | 228.6 | 4 |
| LZ-1.5-10-ET7.6 | 38.1 | 254 | 7.6 |
| LZ-1.5-400-ET3 | 38.1 | 400 | 3 |
| LZ-1.5-1000-ET2.5 | 38.1 | 1000 | 2.5 |
| LZ-1.5-3500-ET3 | 38.1 | 3500 | 3 |
| LZ-50-11.8-ET3 | 50 | 11.8 | 3 |
| LZ-50-45-ET5 | 50 | 45 | 5 |
| LZ-50-50-ET3 | 50 | 50 | 3 |
| LZ-50-67-ET3 | 50 | 67 | 3 |
| LZ-50-3.94-ET3 | 50 | 99.1 | 3 |
| LZ-50-100-ET10 | 50 | 100 | 10 |
| LZ-50-6-ET3 | 50 | 152.4 | 3 |
| LZ-50-200-ET10 | 50 | 200 | 10 |
| LZ-50-200-ET5 | 50 | 200 | 5 |
| LZ-50-1000-ET5 | 50 | 1000 | 5 |
| LZ-2-15-ET3.5 | 50.8 | 15 | 3.5 |
| LZ-2-20-ET5 | 50.8 | 20 | 5 |
| LZ-2-25-ET1.5 | 50.8 | 25 | 1.5 |
| LZ-2-50-ET3 | 50.8 | 50 | 3 |
| LZ-2-2-ET3.5 | 50.8 | 50.8 | 3.5 |
| LZ-2-2.5-ET6 | 50.8 | 63.5 | 6 |
| LZ-2-100-ET3 | 50.8 | 100 | 3 |
| LZ-2-5-ET3 | 50.8 | 127 | 3 |
| LZ-2-5-ET7.8 | 50.8 | 127 | 7.8 |
| LZ-2-5-ET9.6 | 50.8 | 127 | 9.6 |
| LZ-2-5-ET8 | 50.8 | 128.1 | 8 |
| LZ-2-150-ET3 | 50.8 | 150 | 3 |
| LZ-2-6-ET3 | 50.8 | 152.4 | 3 |
| LZ-2-171-ET3.2 | 50.8 | 171 | 3.2 |
| LZ-2-7.5-ET8 | 50.8 | 190.2 | 8 |
| LZ-2-7.5-ET9 | 50.8 | 191.2 | 9 |
| LZ-2-8.75-ET7.8 | 50.8 | 222.2 | 7.8 |
| LZ-2-250-ET3 | 50.8 | 250 | 3 |
| LZ-2-10-ET9.6 | 50.8 | 254 | 9.6 |
| LZ-2-10-ET8 | 50.8 | 256.6 | 8 |
| LZ-2-13-ET3 | 50.8 | 330.2 | 3 |
| LZ-2-500-ET3 | 50.8 | 500 | 3 |
| LZ-2-1000-ET3 | 50.8 | 1000 | 3 |
| LZ-2.5-5-ET6 | 63.5 | 127 | 6 |
| LZ-2.5-8.75-ET7.9 | 63.5 | 222.2 | 7.9 |
| LZ-3-100-ET10 | 76.2 | 100 | 10 |
| LZ-3-200-ET5 | 76.2 | 200 | 5 |
| LZ-3-1000-ET10 | 76.2 | 1000 | 10 |
| LZ-3-4500-ET10 | 76.2 | 4500 | 10 |
| LZ-4-500-ET8 | 101.6 | 500 | 8 |
CO2レーザ用ZnSeメニスカスレンズ
| 型番 | 直径 (mm) | 焦点距離 (inch) | BFL (mm) | エッジ厚 (mm) |
|---|---|---|---|---|
| LZM-12-18.8-ET1.4 | 12 | 18.8 | 19 | 1.4 |
| LZM-12-18.8-ET2 | 12 | 18.8 | 19 | 2 |
| LZM-12.5-33-ET2-9.3 | 12.5 | 33 | 0 | 2 |
| LZM-0.5-17.6-ET2.4 | 12.7 | 17.6 | 15.3 | 2.4 |
| LZM-0.5-3-ET2.5 | 12.7 | 76.2 | 74.3 | 2.5 |
| LZM-0.6-1.5-ET2 | 15.2 | 38.1 | 38 | 2 |
| LZM-15.8-47-ET2.1 | 15.8 | 47 | 48 | 2.1 |
| LZM-18-23.42-ET1.68 | 18 | 23.4 | 24 | 1.7 |
| LZM-18-50-ET2 | 18 | 50 | 51 | 2 |
| LZM-19-7.5-ET2 | 19 | 191.2 | 189.7 | 2 |
| LZM-0.75-1.5-ET2 | 19.1 | 38.1 | 38 | 2 |
| LZM-0.75-2-ET1.5 | 19.1 | 50.8 | 49.3 | 1.5 |
| LZM-0.75-2-ET2 | 19.1 | 50.8 | 49 | 2 |
| LZM-0.75-2.5-ET1.5 | 19.1 | 63.5 | 62.1 | 1.5 |
| LZM-0.75-2.5-ET2 | 19.1 | 63.5 | 64 | 2 |
| LZM-19-2.5-ET2 | 19.1 | 63.5 | 61.7 | 2 |
| LZM-0.75-3-ET2 | 19.1 | 76.2 | 64 | 2 |
| LZM-0.75-3-ET3 | 19.1 | 76.2 | 73.9 | 3 |
| LZM-0.75-3.5-ET2 | 19.1 | 88.9 | 90 | 2 |
| LZM-0.75-5-ET2 | 19.1 | 127 | 125.5 | 2 |
| LZM-0.75-5-ET3 | 19.1 | 127 | 124.8 | 3 |
| LZM-20-2-ET2 | 20 | 50.8 | 64 | 2 |
| LZM-20-2-ET2-I | 20 | 50.8 | 48.9 | 2 |
| LZM-20-2.5-ET2 | 20 | 63.5 | 64 | 2 |
| LZM-22-6-ET3 | 21.5 | 152.4 | 128 | 3 |
| LZM-24-37.1-ET1.5 | 24 | 37.1 | 38 | 1.5 |
| LZM-25-3-ET2.3 | 25 | 76.2 | 74.1 | 2.3 |
| LZM-1-10-ET3 | 25.4 | 10 | 226 | 3 |
| LZM-1-1-ET2 | 25.4 | 25.4 | 22.4 | 2 |
| LZM-1-1.5-ET2 | 25.4 | 38.1 | 35.6 | 2 |
| LZM-1-1.5-ET3 | 25.4 | 38.1 | 38 | 3 |
| LZM-1-45.8-ET3.75B | 25.4 | 45.8 | 42.4 | 3.8 |
| LZM-1-50-ET3 | 25.4 | 50 | 51 | 3 |
| LZM-1-2-ET2 | 25.4 | 50.8 | 51 | 2 |
| LZM-1-2-ET3 | 25.4 | 50.8 | 51 | 3 |
| LZM-1-2.5-ET2 | 25.4 | 63.5 | 61.5 | 2 |
| LZM-1-2.5-ET3 | 25.4 | 63.5 | 51 | 3 |
| LZM-1-73.8-ET3.2 | 25.4 | 73.8 | 74 | 3.2 |
| LZM-1-3-ET2 | 25.4 | 76.2 | 76 | 2 |
| LZM-1-3.75-ET3 | 25.4 | 95.2 | 96 | 3 |
| LZM-1-100-ET3 | 25.4 | 100 | 102 | 3 |
| LZM-1-100-ET3-9.4 | 25.4 | 100 | 0 | 3 |
| LZM-1-4-ET3 | 25.4 | 101.6 | 102 | 3 |
| LZM-1-102-ET3 | 25.4 | 102 | 102 | 3 |
| LZM-1-5-ET2.5 | 25.4 | 127 | 125 | 2.5 |
| LZM-1-5-ET3 | 25.4 | 127 | 128 | 3 |
| LZM-1-152-ET3 | 25.4 | 152 | 153 | 3 |
| LZM-1-6-ET3 | 25.4 | 152.4 | 153 | 3 |
| LZM-1-7.5-ET3 | 25.4 | 190.5 | 188.3 | 3 |
| LZM-1-200-ET3 | 25.4 | 200 | 201 | 3 |
| LZM-1-8-ET3 | 25.4 | 203.2 | 201 | 3 |
| LZM-27-62.4-ET2 | 27 | 62.4 | 64 | 2 |
| LZM-1.1-1.5-ET2 | 27.9 | 38.1 | 35.4 | 2 |
| LZM-1.1-54.1-ET1.7 | 27.9 | 54.1 | 55 | 1.7 |
| LZM-1.1-2.5-ET2 | 27.9 | 63.5 | 64 | 2 |
| LZM-1.1-2.5-ET3 | 27.9 | 63.5 | 61 | 3 |
| LZM-1.1-3.75-ET2.5 | 27.9 | 95.2 | 96 | 2.5 |
| LZM-1.1-3.75-ET3 | 27.9 | 95.2 | 96 | 3 |
| LZM-1.1-5-ET2 | 27.9 | 127 | 125 | 2 |
| LZM-1.1-5-ET3 | 27.9 | 127 | 126 | 3 |
| LZM-1.1-5-ET4 | 27.9 | 127 | 127.7 | 4 |
| LZM-1.1-5-ET5.1 | 27.9 | 127 | 13.3 | 5.1 |
| LZM-1.1-5-ET6 | 27.9 | 127 | 122.7 | 6 |
| LZM-1.1-7.5-ET6 | 27.9 | 190.5 | 191 | 6 |
| LZM-30-54-ET5 | 30 | 54 | 49.7 | 5 |
| LZM-30-69.1-ET2.84 | 30 | 69.1 | 70 | 2.8 |
| LZM-30-3-ET2.5 | 30 | 76.2 | 73.8 | 2.5 |
| LZM-30-100.7-ET5.2 | 30 | 100.7 | 96.7 | 5.2 |
| LZM-30-117.6-ET2.6 | 30 | 117.6 | 119 | 2.6 |
| LZM-30-118.4-ET3 | 30 | 118.4 | 119 | 3 |
| LZM-30-150.1-ET3 | 30 | 150.1 | 153 | 3 |
| LZM-32-71-ET2.7 | 32 | 71 | 72 | 2.7 |
| LZM-32-80.1-ET2.3 | 32 | 80.1 | 77.8 | 2.3 |
| LZM-1.5-1.5-ET3 | 38.1 | 38.1 | 33.7 | 3 |
| LZM-1.5-2-ET3 | 38.1 | 50.8 | 47 | 3 |
| LZM-1.5-2.5-ET6 | 38.1 | 63.5 | 0 | 6 |
| LZM-1.5-2.5-ET7.3 | 38.1 | 63.5 | 57.4 | 7.3 |
| LZM-1.5-3-ET3 | 38.1 | 76.2 | 73 | 3 |
| LZM-1.5-3.75-ET6 | 38.1 | 95.2 | 90.4 | 6 |
| LZM-1.5-4-ET3 | 38.1 | 101.6 | 98.7 | 3 |
| LZM-1.5-5-ET2.4 | 38.1 | 127 | 124.7 | 2.4 |
| LZM-1.5-5-ET3 | 38.1 | 127 | 125 | 3 |
| LZM-1.5-5-ET6 | 38.1 | 127 | 125 | 6 |
| LZM-1.5-5-ET7 | 38.1 | 127 | 125 | 7 |
| LZM-1.5-5-ET7.4 | 38.1 | 127 | 121.5 | 7.4 |
| LZM-1.5-5-ET7.8 | 38.1 | 127 | 121.2 | 7.8 |
| LZM-1.5-5-ET7.87 | 38.1 | 127 | 121.1 | 7.9 |
| LZM-1.5-5-ET9 | 38.1 | 127 | 120.5 | 9 |
| LZM-1.5-6-ET3 | 38.1 | 152.4 | 149.8 | 3 |
| LZM-1.5-6-ET5.5 | 38.1 | 152.4 | 148.2 | 5.5 |
| LZM-1.5-7.5-ET2 | 38.1 | 190.5 | 188.7 | 2 |
| LZM-1.5-7.5-ET3 | 38.1 | 190.5 | 188 | 3 |
| LZM-1.5-7.5-ET4 | 38.1 | 190.5 | 187.4 | 4 |
| LZM-1.5-7.5-ET6 | 38.1 | 190.5 | 185 | 6 |
| LZM-1.5-7.5-ET6.2 | 38.1 | 190.5 | 186 | 6.2 |
| LZM-1.5-7.5-ET7 | 38.1 | 190.5 | 186 | 7 |
| LZM-1.5-7.5-ET7.4 | 38.1 | 190.5 | 185.1 | 7.4 |
| LZM-1.5-7.5-ET7.9 | 38.1 | 190.5 | 1 | 7.9 |
| LZM-1.5-7.5-ET9 | 38.1 | 190.5 | 184.1 | 9 |
| LZM-1.5-8-ET3 | 38.1 | 203.2 | 200.7 | 3 |
| LZM-1.5-8.858-ET7.4 | 38.1 | 225 | 218.1 | 7.4 |
| LZM-1.5-10-ET7.4 | 38.1 | 254 | 248.7 | 7.4 |
| LZM-40-150-ET4 | 40 | 150 | 151 | 4 |
| LZM-2-2-ET3.5-IRDB | 50.8 | 50.8 | 45.3 | 3.5 |
| LZM-2-150-ET3 | 50.8 | 150 | 147 | 3 |
| LZM-2-7.5-ET9.6 | 50.8 | 190.5 | 184.6 | 9.6 |
| LZM-2-10-ET9.6 | 50.8 | 254 | 246.9 | 9.6 |
| LZM-2-15-ET3.5-IRDB | 50.8 | 381 | 377 | 3.5 |
| LZM-2-700-ET3 | 50.8 | 700 | 698.3 | 3 |
| LZM-2-1300-ET4 | 50.8 | 1300 | 1298 | 4 |
| LZM-2-1300-ET6 | 50.8 | 1300 | 1297 | 6 |
| LZM-55-122.8-ET3.3 | 55 | 122.8 | 119.1 | 3.3 |
| LZM-60-79.1-ET1.66 | 60 | 79.1 | 75.2 | 1.7 |
| LZM-60-79.1-ET1.7 | 60 | 79.1 | 75.1 | 1.7 |
| LZM-60-267.7-ET3.3 | 60 | 267.7 | 264.7 | 3.3 |
| LZM-67-92.6-ET3 | 67 | 92.6 | 87.7 | 3 |
| LZM-75-200-ET3 | 75 | 200 | 196.3 | 3 |
CO2レーザ用エアスペースダブレットレンズ
| 型番 | EFL (mm) | CA(mm) | 外径(mm) | 厚み(mm) | WD(mm) |
|---|---|---|---|---|---|
| CO2FL25 | 25 | 25 | 40 | 25.3 | 10.8 |
| CO2FL50 | 50 | 23 | 30 | 20 | 32 |
| CO2FL63.5 | 63.5 | 23 | 30 | 16 | 45.3 |
近赤外レーザ用合成石英平凸レンズ
| 型番 | 直径(mm) | 焦点距離(mm) | エッジ厚(mm) | 波長(nm) |
|---|---|---|---|---|
| LFS-19-25-ET2 | 19 | 25 | 2 | 1064 |
| LFS-19-30-ET2 | 19 | 30 | 2 | 1064 |
| LFS-19-50-ET2 | 19 | 50 | 2 | 1064 |
| LFS-25-75-ET2 | 25 | 75 | 2 | 1064/800/633/532/355 |
| LFS-25-80-ET2 | 25 | 80 | 2 | 1064/800/633/532/355 |
| LFS-25-100-ET2 | 25 | 100 | 2 | 1064/800/633/532/355 |
| LFS-1-50-ET2 | 25.4 | 50 | 2 | 1064 |
| LFS-1-100-ET2 | 25.4 | 100 | 2 | 1064 |
| LFS-1-150-ET2 | 25.4 | 150 | 2 | 1064 |
| LFS-1-200-ET2 | 25.4 | 200 | 2 | 1064 |
| LFS-1-250-ET2 | 25.4 | 250 | 2 | 1064 |
| LFS-1-300-ET2 | 25.4 | 300 | 2 | 1064 |
| LFS-1-500-ET2 | 25.4 | 500 | 2 | 1064 |
| LFS-1-1000-ET2 | 25.4 | 1000 | 2 | 1064 |
| LFS-38-100-ET3 | 38 | 100 | 3 | 1064 |
| LFS-38-150-ET3 | 38 | 150 | 3 | 1064 |
| LFS-38-200-ET3 | 38 | 200 | 3 | 1064 |
| LFS-38-350-ET3 | 38 | 350 | 3 | 1064 |
| LFS-38-500-ET3 | 38 | 500 | 3 | 1064 |
| LFS-45-4-ET1.5 | 45 | 101.6 | 1.5 | 1064/800/633/532/355 |
| LFS-45-5-ET1.5 | 45 | 127 | 1.5 | 1064/800/633/532/355 |
| LFS-45-6-ET1.5 | 45 | 152.4 | 1.5 | 1064/800/633/532/355 |
近赤外レーザ用光学ガラス平凸レンズ
| 型番 | 直径(mm) | 焦点距離(mm) | エッジ厚(mm) | 波長(nm) |
|---|---|---|---|---|
| LBK-10.5-27.8-ET2.5 | 10.5 | 27.8 | 2.5 | 1064/800/633/532/355 |
| LBK-0.5-15-ET2 | 12.7 | 15 | 2 | 1064/800/633/532/355 |
| LBK-0.5-20-ET2 | 12.7 | 20 | 2 | 1064/800/633/532/355 |
| LBK-0.5-31-ET2 | 12.7 | 31 | 2 | 1064/800/633/532/355 |
| LBK-0.5-50-ET2 | 12.7 | 50 | 2 | 1064/800/633/532/355 |
| LBK-0.5-75-ET2 | 12.7 | 75 | 2 | 1064/800/633/532/355 |
| LBK-0.5-100-ET2 | 12.7 | 100 | 2 | 1064/800/633/532/355 |
| LBK-0.5-120-ET2 | 12.7 | 120 | 2 | 1064/800/633/532/355 |
| LBK-0.5-140-ET2 | 12.7 | 140 | 2 | 1064/800/633/532/355 |
| LBK-0.5-160-ET2 | 12.7 | 160 | 2 | 1064/800/633/532/355 |
| LBK-14-37.8-ET2.5 | 14 | 37.8 | 2.5 | 1064/800/633/532/355 |
| LBK-15-20-ET2 | 15 | 20 | 2 | 1064/800/633/532/355 |
| LBK-15-35-ET2.5 | 15 | 35 | 2.5 | 1064/800/633/532/355 |
| LBK-1-25.4-ET2 | 25.4 | 25.4 | 2 | 1064/800/633/532/355 |
| LBK-1-35-ET2 | 25.4 | 35 | 2 | 1064/800/633/532/355 |
| LBK-1-40-ET2.16 | 25.4 | 40 | 2.2 | 1064/800/633/532/355 |
| LBK-1-50-ET2 | 25.4 | 50 | 2 | 1064/800/633/532/355 |
| LBK-1-60-ET2 | 25.4 | 60 | 2 | 1064/800/633/532/355 |
| LBK-1-70-ET2 | 25.4 | 70 | 2 | 1064/800/633/532/355 |
| LBK-1-75-ET2 | 25.4 | 75 | 2 | 1064/800/633/532/355 |
| LBK-1-100-ET2 | 25.4 | 100 | 2 | 1064/800/633/532/355 |
| LBK-1-125-ET2 | 25.4 | 125 | 2 | 1064/800/633/532/355 |
| LBK-1-150-ET2 | 25.4 | 150 | 2 | 1064/800/633/532/355 |
| LBK-1-152-ET2 | 25.4 | 152 | 2 | 1064/800/633/532/355 |
| LBK-1-175-ET2 | 25.4 | 175 | 2 | 1064/800/633/532/355 |
| LBK-1-200-ET2 | 25.4 | 200 | 2 | 1064/800/633/532/355 |
| LBK-1-250-ET2 | 25.4 | 250 | 2 | 1064/800/633/532/355 |
| LBK-1-300-ET2 | 25.4 | 300 | 2 | 1064/800/633/532/355 |
| LBK-1-500-ET2 | 25.4 | 500 | 2 | 1064/800/633/532/355 |
| LBK-1-1000-ET2 | 25.4 | 1000 | 2 | 1064/800/633/532/355 |
| LBK-30-80-ET2 | 30 | 80 | 2 | 1064/800/633/532/355 |
| LBK-30-100-ET2 | 30 | 100 | 2 | 1064/800/633/532/355 |
| LBK-30-120-ET2 | 30 | 120 | 2 | 1064/800/633/532/355 |
| LBK-50-100-ET3 | 50 | 100 | 3 | 1064/800/633/532/355 |
| LBK-50-150-ET3 | 50 | 150 | 3 | 1064/800/633/532/355 |
| LBK-50-200-ET3 | 50 | 200 | 3 | 1064/800/633/532/355 |
| LBK-50-250-ET2 | 50 | 250 | 2 | 1064/800/633/532/355 |
| LBK-50-300-ET2 | 50 | 300 | 2 | 1064/800/633/532/355 |
| LBK-50-400-ET2 | 50 | 400 | 2 | 1064/800/633/532/355 |
| LBK-50-450-ET2 | 50 | 450 | 2 | 1064/800/633/532/355 |
| LBK-50-500-ET2 | 50 | 500 | 2 | 1064/800/633/532/355 |
| LBK-50-600-ET2 | 50 | 600 | 2 | 1064/800/633/532/355 |
| LBK-50-800-ET2 | 50 | 800 | 2 | 1064/800/633/532/355 |
| LBK-50-1000-ET2 | 50 | 1000 | 2.5 | 1064/800/633/532/355 |
1umレーザ用エアスペースダブレットレンズ
| 型番 | EFL (mm) | CA(mm) | 外径(mm) | 厚み(mm) | WD(mm) |
|---|---|---|---|---|---|
| YAGFL30 | 30 | 14 | 20 | 11 | 26.5 |
| YAGFL35 | 35 | 16 | 20 | 11 | 32 |
| YAGFL60 | 60 | 20 | 23 | 14 | 54.5 |
| YAGFL66 | 65.8 | 33 | 41 | 24 | 57.4 |
| YAGFL71 | 70.8 | 26 | 28 | 22.5 | 64.9 |
| YAGFL81 | 80.6 | 46 | 60 | 24.5 | 64.5 |
| YAGFL85 | 85.3 | 26 | 28 | 22.5 | 80 |
| YAGFL100 | 100.2 | 31 | 41 | 22 | 88.3 |
| YAGFL101 | 100.6 | 40 | 48 | 22.5 | 87.3 |
| YAGFL120 | 120.1 | 48 | 54 | 22 | 112.2 |
| YAGFL149 | 148.9 | 45 | 50 | 59 | 152.7 |
| YAGFL153 | 153.4 | 68 | 75 | 43 | 129.3 |
| YAGFL163 | 162.6 | 35 | 41 | 22 | 153.7 |
| YAGFL170 | 170.3 | 45 | 50 | 43 | 169.8 |
| YAGFL200 | 200.1 | 68 | 75 | 23 | 185.9 |
| YAGFL201 | 201.4 | 46 | 60 | 18 | 193.6 |
| YAGFL250 | 249.8 | 48 | 54 | 20 | 247.4 |
1umレーザ用エアスペーストリプレットレンズ
| 型番 | EFL (mm) | CA(mm) | 外径(mm) | 厚み(mm) | WD(mm) |
|---|---|---|---|---|---|
| YAGFL25 | 25.2 | 12.5 | 25 | 13.5 | 19.7 |
| YAGFL40 | 40.1 | 26 | 28 | 22.5 | 31.6 |
| YAGFL47 | 46.4 | 34 | 41 | 30 | 32.5 |
| YAGFL50 | 50 | 23.5 | 35 | 34 | 27.5 |
| YAGFL50W | 50 | 26 | 36 | 26 | 28.1 |
| YAGFL58 | 58.2 | 34 | 41 | 23 | 49 |
| YAGFL77 | 77 | 34 | 41 | 23 | 67.7 |
| YAGFL80 | 80 | 48 | 54 | 36 | 58.8 |
| YAGFL90 | 90 | 35 | 41 | 32 | 90.1 |
| YAGFL122 | 121.6 | 35 | 41 | 24 | 110.7 |
| YAGFL125 | 125 | 44 | 52 | 28 | 114.5 |
| YAGFL135 | 135 | 45 | 52 | 32 | 126 |
532nmレーザ用エアスペースダブレットレンズ
| 型番 | EFL (mm) | CA(mm) | 厚み(mm) | WD(mm) |
|---|---|---|---|---|
| 532nmFL30 | 29.8 | 14 | 11 | 25 |
| 532nmFL115 | 114.5 | 30 | 26 | 105.3 |
| 532nmFL170 | 170.3 | 30 | 26 | 126.8 |
| 532nmFL200 | 200 | 30 | 26 | 229.7 |
| 532nmFL271 | 270.6 | 30 | 26 | 241.8 |
532nmレーザ用エアスペーストリプレットレンズ
| 型番 | EFL (mm) | CA(mm) | 外径(mm) | 厚み(mm) | WD(mm) |
|---|---|---|---|---|---|
| 532nmFL47 | 47 | 34 | 41 | 30 | 29.8 |
| 532nmFL77 | 76.6 | 35 | 41 | 24 | 64.1 |
| 532nmFL80 | 80 | 34 | 45 | 27.9 | 63.1 |
| 532nmFL89 | 89.4 | 35 | 41 | 32 | 88.8 |
| 532nmFL100 | 99.8 | 20 | 41 | 16 | 86.7 |
UV（355nm/266nm）レーザ用エアスペースダブレットレンズ
| 型番 | EFL (mm) | CA(mm) | 外径(mm) | 厚み(mm) | WD(mm) | 波長 |
|---|---|---|---|---|---|---|
| 355nmFL48 | 48.2 | 23 | 40 | 20 | 45.3 | 355 |
| 355nmFL86 | 86.4 | 28 | 40 | 23.2 | 65.2 | 355 |
| 355nmFL115 | 115 | 30 | 40 | 20 | 106.4 | 355 |
| 266nmFL46 | 46.3 | 23 | 40 | 20 | 43.1 | 266 |
| 266nmFL82 | 82.4 | 30 | 40 | 20 | 73.8 | 266 |
| 266nmFL115 | 115 | 30 | 40 | 20 | 101.1 | 266 |
UV（355nm/266nm）レーザ用エアスペーストリプレットレンズ
| 型番 | EFL (mm) | CA(mm) | 外径(mm) | 厚み(mm) | WD(mm) | 波長 |
|---|---|---|---|---|---|---|
| 355nmFL25 | 25.4 | 18 | 25 | 17 | 19.4 | 355 |
| 355nmFL47 | 47 | 34 | 41 | 30 | 32.7 | 355 |
| 355nmFL60 | 60 | 36 | 40 | 27 | 47.8 | 355 |
| 355nmFL92.6 | 92.6 | 46 | 54 | 34 | 84.13 | 355 |
| 266nmFL24 | 24.1 | 12 | 25 | 17 | 17.1 | 266 |
| 266nmFL57 | 57.3 | 34 | 41 | 30 | 43.9 | 266 |
アクロマートタイプエアスペースダブレットレンズ
| 型番 | EFL (mm) | CA(mm) | 外径(mm) | 厚み(mm) | WD(mm) |
|---|---|---|---|---|---|
| YAGFL40A | 40 | 26 | 36 | 22 | 29.79 |
| YAGFL47A | 47 | 34 | 41 | 30 | 31.9 |
| YAGFL58A | 58 | 34 | 41 | 23 | 48.5 |
| YAGFL77A | 77 | 34 | 41 | 23 | 63.5 |
| YAGFL120A | 120 | 46 | 60 | 21 | 104.32 |
CO2レーザ用平凹レンズ
| 型番 | 直径 (mm) | 焦点距離 (inch) | エッジ厚 (mm) |
|---|---|---|---|
| LZ-5+10-ET2 | 5 | -10 | 2 |
| LZ-8+16-ET2 | 8 | -16 | 2 |
| LZ-10.16+0.5-ET3.6 | 10 | -12.7 | 3.6 |
| LZ-10+1.4-ET1.25 | 10 | -35.6 | 1.3 |
| LZ-12.5+0.38-ET3 | 12.5 | -10.2 | 3 |
| LZ-12.5+0.5-ET2.6 | 12.5 | -12.7 | 2.6 |
| LZ-12.5+0.45-ET2.8 | 12.5 | -12.7 | 2.8 |
| LZ-12.5+0.5-ET3 | 12.5 | -12.7 | 3 |
| LZ-12.5+0.55-ET2.1 | 12.5 | -15.2 | 2.1 |
| LZ-12.5+0.6-ET2.6 | 12.5 | -15.2 | 2.6 |
| LZ-12.5+0.75-ET2 | 12.5 | -20.3 | 2 |
| LZ-12.5+0.75-ET2.3 | 12.5 | -20.3 | 2.3 |
| LZ-12.5+0.75-ET3 | 12.5 | -20.3 | 3 |
| LZ-12.5+0.75-ET3.3 | 12.5 | -20.3 | 3.3 |
| LZ-12.5+1-ET2 | 12.5 | -25.4 | 2 |
| LZ-12.5+1-ET2.3 | 12.5 | -25.4 | 2.3 |
| LZ-12.5+1-ET3 | 12.5 | -25.4 | 3 |
| LZ-12.5+1.2-ET2.5 | 12.5 | -30.5 | 2.5 |
| LZ-12.5+1.5-ET2 | 12.5 | -38.1 | 2 |
| LZ-12.5+2.2-ET2.3 | 12.5 | -55.9 | 2.3 |
| LZ-12.5+2.2-ET2.25 | 12.5 | -55.9 | 2.3 |
| LZ-12.5+7-ET3 | 12.5 | -177.8 | 3 |
| LZ-12.5+8-ET1.3 | 12.5 | -203.2 | 1.3 |
| LZ-0.5+14.4-ET3 | 12.7 | -14.4 | 3 |
| LZ-0.5+17.8-ET3 | 12.7 | -17.8 | 3 |
| LZ-0.5+18.5-ET3 | 12.7 | -18.5 | 3 |
| LZ-0.5+32-ET2.2 | 12.7 | -32 | 2.2 |
| LZ-12.7+1.48-ET2 | 12.7 | -38.1 | 2 |
| LZ-0.5+1.5-ET3 | 12.7 | -38.1 | 3 |
| LZ-15+11.6-ET3.68 | 15 | -11.6 | 3.7 |
| LZ-15+11.6-ET3.7 | 15 | -11.6 | 3.7 |
| LZ-15+13.97-ET3.6 | 15 | -14 | 3.6 |
| LZ-15+19.1-ET3.3 | 15 | -19.1 | 3.3 |
| LZ-15+0.75-ET3.1 | 15 | -20.3 | 3.1 |
| LZ-15+1-ET3.3 | 15 | -25.4 | 3.3 |
| LZ-15+0.6-ET3.3 | 15 | -25.4 | 3.3 |
| LZ-15+26.06-ET3 | 15 | -26.1 | 3 |
| LZ-15+30-ET3 | 15 | -30 | 3 |
| LZ-15+1.5-ET3 | 15 | -38.1 | 3 |
| LZ-15+1.5-ET2.5 | 15 | -38.1 | 2.5 |
| LZ-15+38.71-ET2.57 | 15 | -38.7 | 2.6 |
| LZ-15+38.71-ET2.6 | 15 | -38.7 | 2.6 |
| LZ-15+2-ET2 | 15 | -50.8 | 2 |
| LZ-15+56-ET2.9 | 15 | -56 | 2.9 |
| LZ-15+56-ET2.86 | 15 | -56 | 2.9 |
| LZ-15+60-ET3 | 15 | -60 | 3 |
| LZ-0.6+1-ET4.6 | 15.2 | -25.4 | 4.6 |
| LZ-0.6+2-ET2 | 15.2 | -50.8 | 2 |
| LZ-17+30.3-ET3 | 17 | -30.3 | 3 |
| LZ-17.5+0.55-ET3.5 | 17.5 | -15.2 | 3.5 |
| LZ-17.5+0.75-ET3 | 17.5 | -20.3 | 3 |
| LZ-17.5+1-ET3 | 17.5 | -25.4 | 3 |
| LZ-17.5+1.2-ET2.5 | 17.5 | -30.5 | 2.5 |
| LZ-17.5+1.5-ET3 | 17.5 | -38.1 | 3 |
| LZ-19+25.714-ET3.15 | 19 | -25.7 | 3.2 |
| LZ-0.75+25-ET3 | 19.1 | -25 | 3 |
| LZ-0.75+1-ET3 | 19.1 | -25.4 | 3 |
| LZ-0.75+1-ET3.3 | 19.1 | -25.4 | 3.3 |
| LZ-0.75+30-ET3 | 19.1 | -30 | 3 |
| LZ-0.75+1.5-ET4 | 19.1 | -38.1 | 4 |
| LZ-0.75+1.5-ET3 | 19.1 | -38.1 | 3 |
| LZ-0.75+50-ET3 | 19.1 | -50 | 3 |
| LZ-0.75+2-ET3 | 19.1 | -50.8 | 3 |
| LZ-20+23-ET3-E | 20 | -23 | 3 |
| LZ-20+94.74-ET2.9 | 20 | -94.7 | 2.9 |
| LZ-20+712-ET3 | 20 | -712 | 3 |
| LZ-20+1000-ET3 | 20 | -1000 | 3 |
| LZ-20+1425-ET3 | 20 | -1425 | 3 |
| LZ-25+0.55-ET5.74 | 25 | -15.2 | 5.7 |
| LZ-25+0.55-ET5.7 | 25 | -15.2 | 5.7 |
| LZ-25+0.6-ET4.3 | 25 | -15.2 | 4.3 |
| LZ-25+0.75-ET4.9 | 25 | -20.3 | 7.9 |
| LZ-25+1-ET4.4 | 25 | -25.4 | 4.4 |
| LZ-25+37.46-ET3.3 | 25 | -37.5 | 3.3 |
| LZ-25+1.5-ET3.4 | 25 | -38.1 | 3.4 |
| LZ-25+56-ET3.6 | 25 | -56 | 3.6 |
| LZ-25+84-ET3.2 | 25 | -84 | 3.2 |
| LZ-25+4.4-ET3.5 | 25 | -111.8 | 3.5 |
| LZ-25+406-ET3 | 25 | -406 | 3 |
| LZ-1+18-ET4.5 | 25.4 | -18 | 4.5 |
| LZ-1+35-ET3.5 | 25.4 | -35 | 3.5 |
| LZ-1+2-ET3 | 25.4 | -50.8 | 3 |
| LZ-1+2.5-ET3 | 25.4 | -63.5 | 3 |
| LZ-1.1+2.5-ET3 | 27.9 | -63.5 | 3 |
| LZ-44+118-ET3.07 | 44 | -118 | 3.1 |
| LZ-44+118-ET3.1 | 44 | -188 | 3.1 |
| LZ-50+100-ET10 | 50 | -100 | 10 |
| LZ-2+50-ET5 | 50.8 | -50 | 5 |
| LZ-3+100-ET10 | 76.2 | -100 | 10 |
CO2レーザ用メニスカスレンズ
| 型番 | 直径 (mm) | 焦点距離 (inch) | エッジ厚 (mm) |
|---|---|---|---|
| LZM-12.5+8.9-ET3 | 12.5 | -8.9 | 3 |
| LZM-0.5+17.6-ET2.4 | 12.7 | -17.6 | 2.4 |
| LZM-15+16.4-ET3 | 15 | -16.4 | 3 |
| LZM-16+20.4-ET3.2 | 16 | -20.4 | 3.2 |
| LZM-21.5+14.55-ET2.5 | 21.5 | -14.6 | 2.5 |
| LZM-25+8.9-ET4.4 | 25 | -8.9 | 4.4 |
| LZM-60+369-ET5.5 | 60 | -369 | 5.5 |
1umレーザ用平凹レンズ
| 型番 | 直径 (mm) | 焦点距離 (inch) | エッジ厚 (mm) | 波長 (nm) |
|---|---|---|---|---|
| LFS-7+0.6-ET2.2 | 7 | -15.2 | 2.2 | 1064 |
| LFS-12+2.5-CT2 | 12 | -2.5 | 2 | 1064 |
| LFS-12+16-ET3.2 | 12 | -16 | 3.2 | 1064 |
| LFS-12+25-ET3.1 | 12 | -25 | 3.1 | 1064 |
| LFS-12+1-ET3.2 | 12 | -25.4 | 3.2 | 1064 |
| LFS-12+34.3-ET2.7 | 12 | -34.3 | 2.7 | 1064 |
| LFS-12+39.2-ET3 | 12 | -39.2 | 3 | 1064 |
| LFS-12+64.2-ET2.4 | 12 | -64.2 | 2.4 | 1064 |
| LFS-12.5+0.375-ET4 | 12.5 | -9.5 | 4 | 1064 |
| LFS-12.5+0.5-ET4 | 12.5 | -12.7 | 4 | 1064 |
| LFS-12.5+16-ET4.3 | 12.5 | -16 | 4.3 | 1064 |
| LFS-15+50-ET2.5 | 15 | -50 | 2.5 | 1064 |
| LFS-17.5+36.75-ET3.4 | 17.5 | -36.8 | 3.4 | 1064 |
| LFS-17.5+65.4-ET3 | 17.5 | -65.4 | 3 | 1064 |
| LFS-1+1.13-ET12.7 | 25.4 | -28.7 | 12.7 | 1064 |
| LFS-28+252.7-ET3.2 | 28 | -252.7 | 3.2 | 1064 |
| LFS-36+189.7-ET4.67 | 36 | -189.7 | 4.7 | 1064 |
| LFS-36+192.79-ET4.6 | 36 | -192.8 | 4.6 | 1064 |
| LFS-36+383.95-ET4.7 | 36 | -384 | 4.7 | 1064 |
| LFS-10+33.5-ET3.3FB | 10 | -33.5 | 3.3 | 1090 |
| LFS-10+33.8-ET3.3FB | 10 | -33.8 | 3.3 | 1090 |
532nmレーザ用平凹レンズ
| 型番 | 直径 (mm) | 焦点距離 (inch) | エッジ厚 (mm) | 材質 |
|---|---|---|---|---|
| LFS-8+7.35-ET2.85G | 8 | -7.4 | 2.9 | 合成石英 |
| LFS-10+8.46-ET4.1G | 10 | -8.5 | 4.1 | 合成石英 |
| LFS-10+14.9-ET3.7G | 10 | -14.9 | 3.7 | 合成石英 |
| LFS-10+18.78-ET2.5G | 10 | -18.8 | 2.5 | 合成石英 |
| LFS-10+24.7-ET2.6G | 10 | -24.7 | 2.6 | 合成石英 |
| LFS-10+35.65-ET2G | 10 | -36.7 | 2 | 合成石英 |
| LFS-10+73.31-ET2.38G | 10 | -73.3 | 2.4 | 合成石英 |
| LBK-0.5+15-ET2 | 12.7 | -15 | 2 | BK7 |
| LBK-0.5+20-ET2 | 12.7 | -20 | 2 | BK7 |
| LBK-0.5+25-ET2 | 12.7 | -25 | 2 | BK7 |
| LBK-0.5+30-ET2 | 12.7 | -30 | 2 | BK7 |
| LBK-0.5+40-ET2 | 12.7 | -40 | 2 | BK7 |
| LFS-20+54.5-ET4.2G | 20 | -54.5 | 4.2 | 合成石英 |
関連ページ
-
![ビームエキスパンダ]()
-
![fθレンズ]()
fΘレンズはガルバノスキャナと一緒に使われる光学部品で、走査ビーム角度がΘのとき、f×Θの大きさの像を結ぶ光学系です。レーザ加工においては、スキャンエリア内で均一なスポットサイズでの加工が可能となります。 -
![ビームシェイパー]()
トップハット、ドーナッツ、リング、矩形ビームを成形するためのビームシェーパーです。DoEと比較すると新規製作コストが安く、ロスが低いのが特徴です。 -
![熱レンズ効果対策製品]()

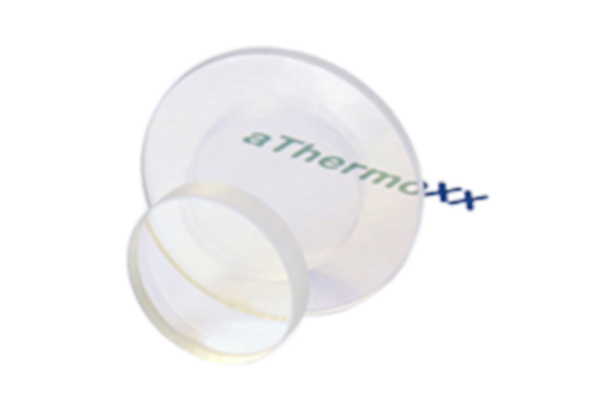

高出力レーザで使用される光学部品は、わずかなレーザ光の吸収による発熱により、屈折率や形状が変化し、集光特性が変わります。ここでご紹介する製品は熱レンズ効果を抑制する特殊な光学部品です。 -
![QBHコネクタ用コリメータ]()

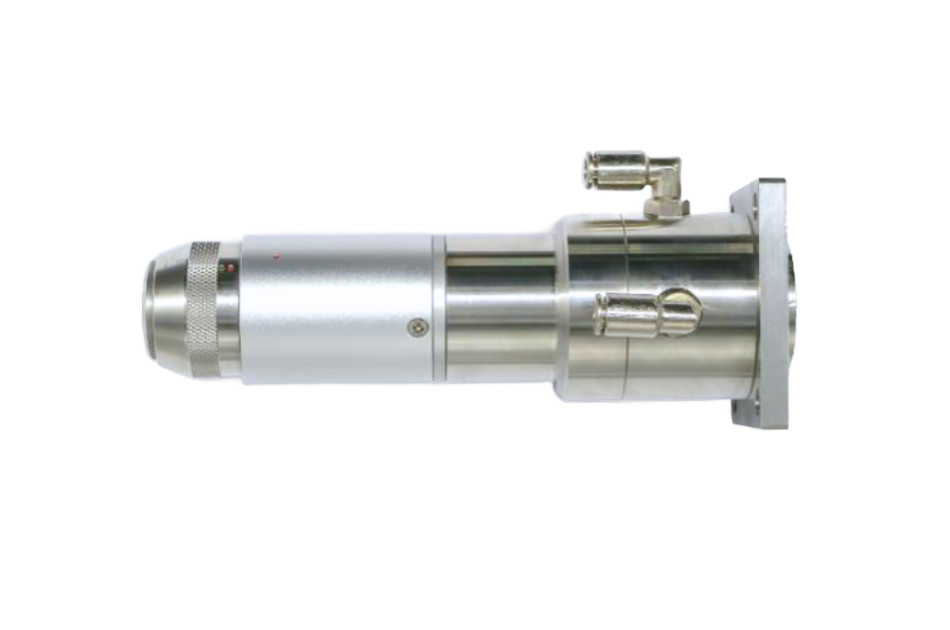

QBHコネクタマウントが取り付けられる高出力ファイバレーザ用コリメータです。
